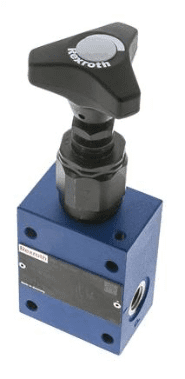

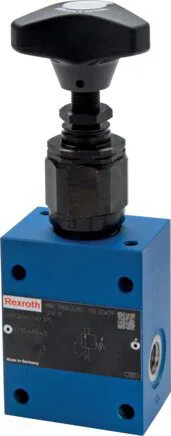

Bosch-Rexroth pressure limiting valve G 1/4",1 to 25 bar/50 l/min Item number: DBDH6G1X/25

Bosch-Rexroth წნევის მარეგულირებელი სარქველი

Original price was: 1800,00 ₾.Current price is: 1500,00 ₾.

კატეგორია:

აღწერა

DBDH6G1X/25
DBDH6G1X/25
Bosch-Rexroth pressure limiting valve G 1/4",1 to 25 bar/50 l/minItem number: DBDH6G1X/25
Bosch-Rexroth pressure limiting valve G 1/4″,1 to 25 bar/50 l/min
Item number: DBDH6G1X/25
Bosch-Rexroth pressure limiting valve G 1/4",1 to 25 bar/50 l/minItem number: DBDH6G1X/25
Bosch-Rexroth pressure limiting valve G 1/4″,1 to 25 bar/50 l/min
Item number: DBDH6G1X/25

Suitable:
The valves restrict the system pressure and are ideal for overpressure protection as well as for continuous operation.
Materials:
Valve housing and screw-in valve: steel, hand wheel: plastic, seals: NBR
Temperature range:
-30°C to +80°C
Media:
Hydraulic oils on the basis of mineral oil
Properties
Nominal flow [l/min] 50
Thread (3x) G 1/4″
Pressure control range* [bar] 1 – 25

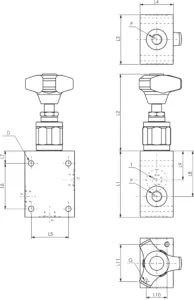

L1 [mm] 80
L2 [mm] 94
L3 [mm] 60
L4 [mm] 40
L5 [mm] 45
L6 [mm] 55
L7 [mm] 15
L8 [mm] 55
L9 [mm] 35
L10 [mm] 25
L11 [mm] 45
G M 6
D [mm] 6,6
P G 1/4″
T G 1/4″
Further information:
Weight 1,6 kg / pcs
GTIN 4050571245344
Customs duty number 84812010
Manufacturer Bosch-Rexroth
