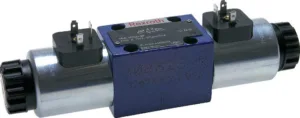

Bosch-Rexroth გამანაწილებელი
4WE6H6X/EG24N9K4

Bosch-Rexroth გამანაწილებელი

2000,00 ₾

კატეგორია:

აღწერა



4WE6H6X/EG24N9K4







Suitable:
These solenoid-operated way valves are used in hydraulic systems predominantly for starting, stopping and changing the direction of flow of the liquid. Using NG 6 the pressure valve, the flow control valve and the check valve sandwich plates are arranged like a stack to form a circuit in the smallest space possible.
Materials:
Body: Spheroidal cast iron, internal parts: Steel, seals: NBR
Temperature range:
-30°C to +80°C
Media:
Hydraulic oils on the basis of mineral oil (viscosity: Bosch Rexroth: 2,8 – 500 mm²/s, alternatively: 20 – 400 mm²/s)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Operating pressure:
0 to 350 bar
Nominal flow:
Up to approx. 80 l/min (request pressure loss curves if required), we recommend usage up to approx. 40 l/min
Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.
Scope of delivery:
Valve including seals, without screws and plugs.
Warning:
Please do not forget to order screws and valve plugs.
Properties
Version Bosch-Rexroth
function 4/3-directional valve

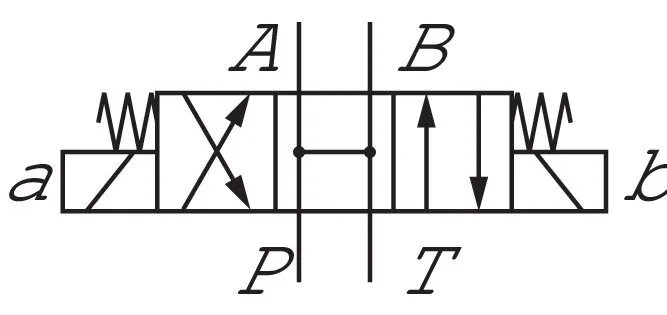

Schematic symbol H
Control voltage 24 V DC
Power consumption (DC) [W] 30
compatible standard connector ST 03
suitable screws (4 pcs. per valve required) 912-M5X50 12.9
Spare solenoid coil 4WE6MAG24V=
A [mm] 205,4
C [mm] 85,5
Screw length [mm] 50
Further information:
Weight 2 kg / pcs
GTIN 4050571199333
Customs duty number 84812010
Manufacturer Bosch-Rexroth
