მანომეტრი წნევის საზომი ორმაგი კონტაქტით
1250,00 ₾
აღწერა
![Contact pressure gauge (CrNi/Ms)](https://i0.wp.com/jino.ge/wp-content/uploads/2024/01/mskcr_k_0_100_100-300x259.webp?resize=300%2C259&ssl=1)
WIKA
![MSK -106100/21 CR](https://i0.wp.com/jino.ge/wp-content/uploads/2024/01/z_mk21-233x300.webp?resize=233%2C300&ssl=1)

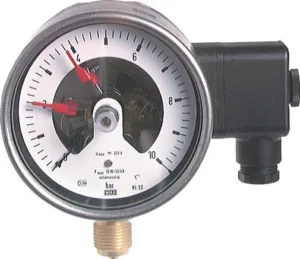

Contact pressure gauge (CrNi/Ms), vert., 100mm, -1 to 0,6 bar
Suitable:
Pressure gauge with double contact no. 21 (magnetic quick contact), 1 NC, 1 NO. Switching options varying from this are optionally available.
Materials:
Housing: 1.4301, Measuring system: Cu-alloy (1.4404 for pressures >= 100 bar), connection: Brass, window: polycarbonate
Connection thread:
G 1/2″ *

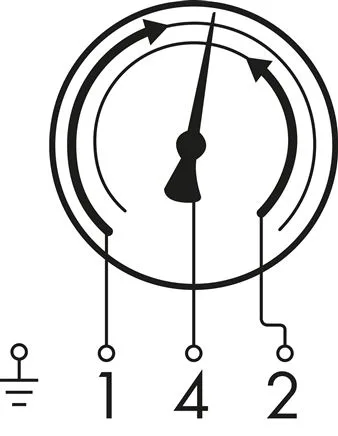

Double contact no. 21:
The 1st contact opens, the 2nd contact closes when the respective setpoint value is exceeded
Class:
1.0 (-1 to 0 bar & 0 to 1 bar: 2.5)
Temperature range:
Ambience: -20°C to +60°C, measured material: -20°C to +80°C
Protection class:
IP 54
Note:
WIKA Type PGS21 (212.20)
Properties
Version | Contact pressure gauge |
Switch function | Double contact no. 21: The 1st contact opens, the 2nd contact closes when the respective setpoint value is exceeded |
Diameter [mm] | 100 |
Display range [bar] | -1 to 0.6 |
Scale division [bar] | 0,05 |
Accuracy class | 1,0 |
adjusting spanner as spare part | MSK SCHLUSSEL |
Further information:
Weight | 1,1 kg / pcs |
GTIN | 4050571503949 |
Customs duty number | 90262040 |
Manufacturer | Wika |
