Description

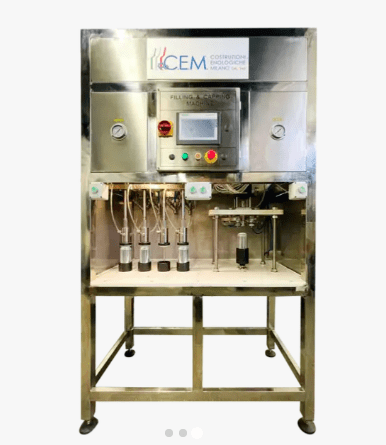

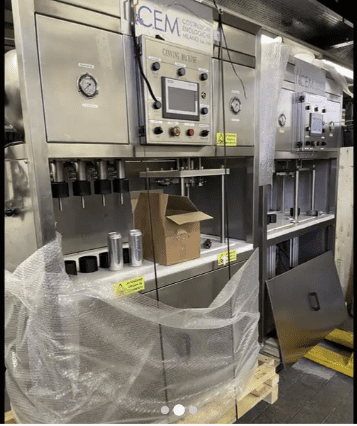

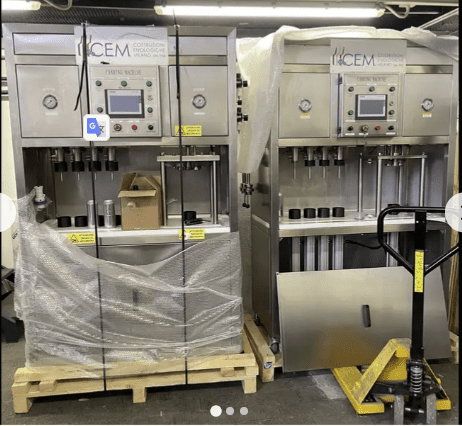

New Semi Automatic Isobaric Can Filler 2022

SEMIAUTOMATIC CAN-SEALING MACHINE MOD. CEM CAN
Machine composed by:
2 or 4 isobaric filling valves
1 sealing head

Machine frame in AISI 304 stainless steel
Beer tank in AISI 304 stainless steel
Beer connectors and pneumatic line in AISI 304 stainless steel
Emergency stop

Two-hand switch control for operator protection during the work phases
Suitable for filling 330ml and 500ml aluminum cans with the same diameter.

Machine features:

The equipment is made of high quality stainless steel 304, it is durable, safe and reliable to use, compact in design, easy to operate.

The filling process is automatically controlled by PLC. This machine is mainly composed of frame, electrical control system, tray, filling valve, beer storage tank, cap turning machine etc.

Process of work:

Cylinder compression ~ gas replacement (the CO2 valve and pressure relief valve are opened at the same time) ~ CO2 pressure backup ~ filling (while the CO2 return valve is open) ~ pressure stabilization ~ pressure relief ~ cylinder rise.

Main specifications and sizes – New Semi Automatic Isobaric Can Filler

Dimension of worktable: 880mm*500mm
Worktable height: 850mm
Machine dimensions: 1000mm*620mm*1850mm
Maximum stroke of cylinder piston: 300mm
Net weight: 150Kg

Technical parameters:

Beer source pressure 0.2 —- 0.3Mpa
Beer source temperature 1——–4℃
Compressed air source pressure 0.6 —- 0.8Mpa
CO2 pressure 0.2 —- 0.3Mpa
Air cylinder pressure 0.5—- 0.6Mpa
Power supply Single phase 220V 50Hz (customizable)
Excluded : air compressor pump – one way valve
MOD. CEM CAN
2-1 hourly production up to 200 cans/h
